HiltiCFS-BL firestop block - Firestop blocks, plugs, or cushions - Hilti Australia

Store / All Products
AU$24.06
In stock
Product Details

Dimensions (LxWxH)

200 x 130 x 50 mm

Length

200 mm

Pack size

1 pc

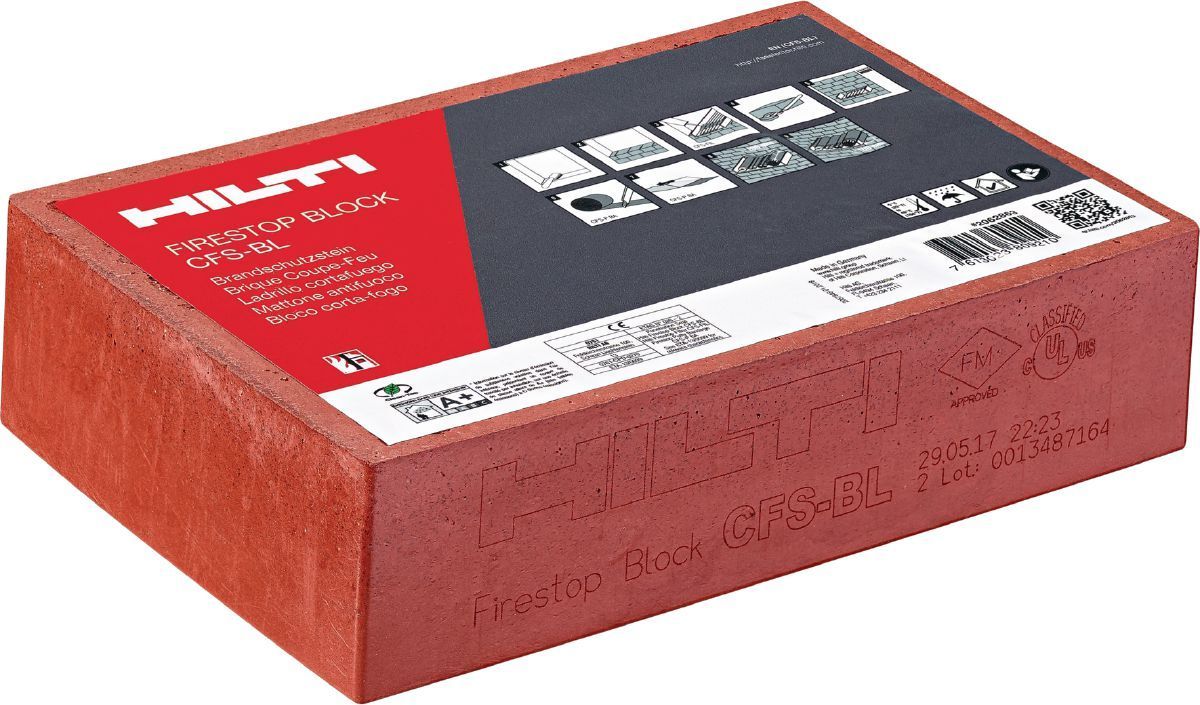

Preformed firestop blocks for sealing penetrations with cables

Approvals: ETA-13/0099

Base materials: Concrete, Masonry, Gypsum board, Sandwich Panel, Multi

LEED VOC: 5.4 g/l

Technical Data

Approvals ETA-13/0099
Base materials Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
LEED VOC 5.4 g/l
Maximum wall opening (WxH) 1000 x 1000 mm
Storage and transportation temperature range -5 - 40 °C
Application temperature range 5 - 40 °C
Temperature resistance range -15 - 60 °C
Reaction to fire class (EN 13501-1) E
Product class Ultimate

DOWNLOADS

PDFEnvironmental Product Declaration_CFS-BL and CFS-PL_UL_2021_EN, English [ 1.4 MB ]

Features & Applications

Features

  • Easy to instal – no power tools required
  • Easy maintenance and possible retrofitting of cables
  • Economical installation – firestop blocks arrive pre-cured and ready-to-use
  • Fibre-, halogen- and solvent-free
  • Virtually dust-free (depending on the installation method)

Applications

  • Temporary or permanent passive fire sealing around cables, cable bundles and cable trays in wall and floor openings
  • Firestopping penetrations for cables, cable bundles and cable trays
  • Firestopping penetrations for conduits and conduit bundles
  • Firestopping penetrations for co-axial cables
  • Optimal for rooms with dust- and fibre-free requirements and areas with frequent retrofitting, such as server rooms, laboratories and hospitals
